Number

A number that can include a decimal or fractional parts

Specification

validate

• Type: Object

• Specifies parameter validation

Available parameters:

Parameter	Type	Specification
max	number	Specifies the maximum numeric value.
min	number	Specifies the minimum numeric value.

nested

Available types:

Type	Specification
array	Provides an array of nested parameters that are shown when the value of the parameter is set (value is not empty)
string	Provides the URL address of an RPC to load the list of nested parameters.
object	Provides a detailed specification of nested parameters.

Use of nested fields

{
    "name": "myNumber",
    "type": "number",
    "label": "My Number",
    "nested": "rpc://getNestedFields"
}

Example

Basic numeric input

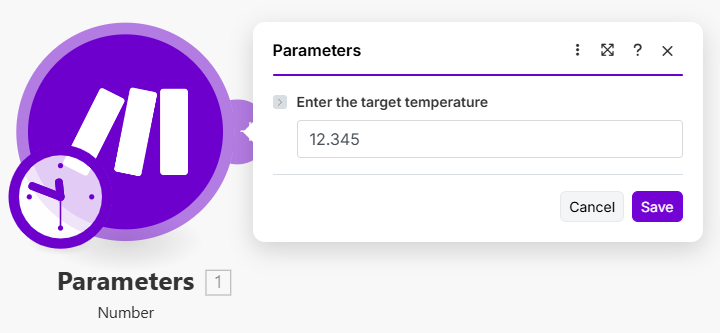

Appearance

Source

[
	{
		"name": "temperature",
		"label": "Enter the target temperature",
		"type": "number"
	}
]

Output

12.345

For more examples, see the Integer/Uinteger parameter specification.
