Filename

A file name with extension

Specification

extension

• Type: String or Array.

• Allowed extension or array of allowed extensions.

nested

Available types:

Type	Specification
array	Provides an array of nested parameters that are shown when the value of the parameter is set (value is not empty).
string	Provides the URL address of an RPC to load the list of nested parameters.
object	Provides a detailed specification of nested parameters.

Use of nested fields

{
    "name": "myFilename",
    "type": "filename",
    "label": "My Filename",
    "nested": "rpc://getNestedFields"
}

Examples

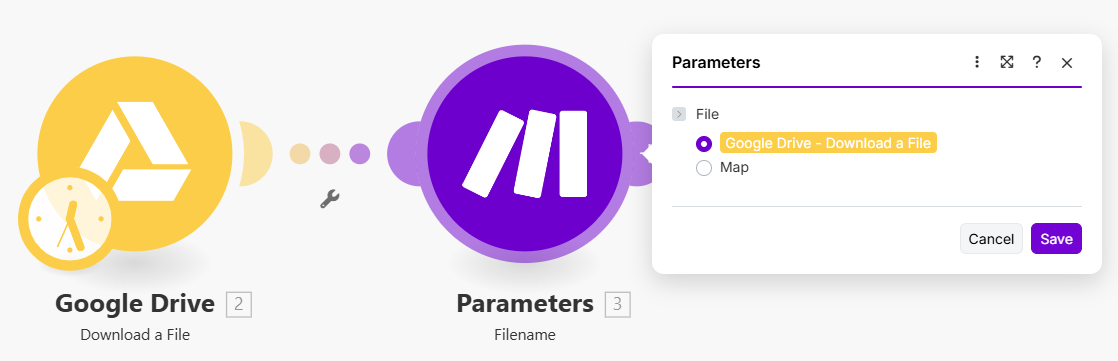

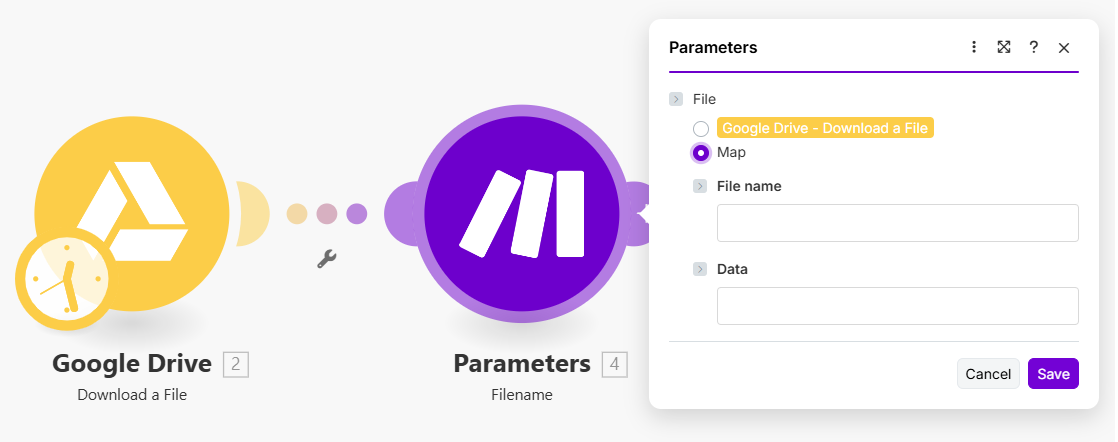

File input

When combined with filename parameter, the buffer can be used for a file input dialog.

Appearance

Source

[
	{
		"name": "fileName",
		"type": "filename",
		"label": "File name",
		"semantic": "file:name"
	},
	{
		"name": "data",
		"type": "buffer",
		"label": "Data",
		"semantic": "file:data"
	}
]

Allowed file extensions

Restrict allowed extensions by adding extension option.

Appearance

Source

[
	{
		"name": "fileName",
		"type": "filename",
		"label": "File name",
		"semantic": "file:name",
		"extension": ["jpg", "bmp", "png"],
		"help": "Only files with the following extensions are allowed: `jpg`, `bmp`, `png`."
	},
	{
		"name": "data",
		"type": "buffer",
		"label": "Data",
		"semantic": "file:data"
	}
]
