Integer, Uinteger

A whole number or positive whole number

Specification

validate

• Type: Object

• Specifies parameter validation

Available parameters:

Parameter	Type	Specification
max	number	Specifies the maximum numeric value.
min	number	Specifies the minimum numeric value.

nested

Available types:

Type	Specification
array	Provides an array of nested parameters that are shown when the value of the parameter is set (value is not empty)
string	Provides the URL address of an RPC to load a list of nested parameters.
object	Provides a detailed specification of nested parameters.

Use of nested fields

{
    "name": "myInteger",
    "type": "integer",
    "label": "My Integer",
    "nested": "rpc://getNestedFields"
}

Examples

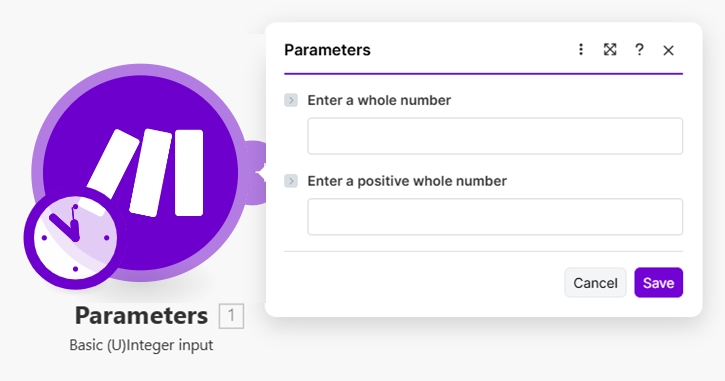

Basic integer and uinteger input

Appearance

Source

[
	{
		"name": "wholenumber",
		"label": "Enter a whole number",
		"type": "integer"
	},
	{
		"name": "positivewholenumber",
		"label": "Enter a positive whole number",
		"type": "uinteger"
	}
]

Output

-1

1

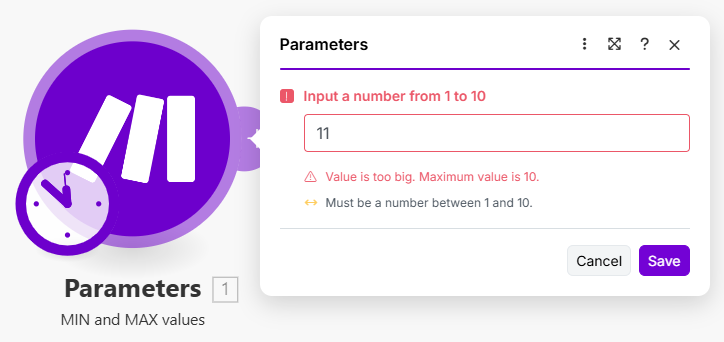

Set minimum and maximum value

Appearance

Source

[
	{
		"name": "thinking",
		"label": "Think a number from 1 to 10",
		"type": "integer",
		"validate": {
			"min": 1,
			"max": 10
		}
	}
]
