Search

The search module makes a request (or several) and returns multiple results. It doesn’t have state nor any internal complex logic.

Use this module when you need to allow the user to search for items or simply return multiple items.

Components

Communication

For additional information, see our communication documentation.

Pagination

If API supports pagination, you can implement it by using the pagination directive.

Static Parameters

You can use static parameters inside the search module without any restrictions.

Mappable Parameters

You can use mappable parameters inside the search module without any restrictions.

Interface

Unlike the action module, the search module can return multiple bundles at once.

Samples

To help the users with setting up your module, provide samples.

​Scope​

When using an OAuth type of connection, use the scope to define scopes required by this module.

Available IML variables

These IML variables are available for you to use everywhere in this module:

Variable	Description
now	Current date and time
environment	TBD
temp	Contains custom variables created via the temp directive.
parameters	Contains the module’s input parameters.
connection	Contains the connection’s data collection.
common	Contains the app’s common data collection.
data	Contains the module’s data collection.
scenario	TBD
metadata.expect	Contains the module’s raw parameters array in the way you have specified it in the configuration.
metadata.interface	Contains module’s raw interface array in the way you have specified it in the configuration.

Additional variables available for the response object:

Variable	Description
output	When using the wrapper directive, the output variable represents the result of the outputdirective.
limit	When using a limit, the process of retrieving items will stop once the requested number of items has been obtained or if a page doesn't contain any items. Additionally, the module will return only the exact number of items that was specified.
iterate	Iterates the array in the response into items.

Additional variables available after using the iterate directive, i.e. in wrapper or pagination directives:

Variable	Description
iterate.container.first	Represents the first item of the array you iterated.
iterate.container.last	Represents the last item of the array you iterated.

Additional variables available for pagination and response objects:

Variable	Description
body	Contains the body that was retrieved from the last request.
headers	Contains the response headers that were retrieved from the last request.
items	When iterating this variable represents the current item that is being iterated.

Example

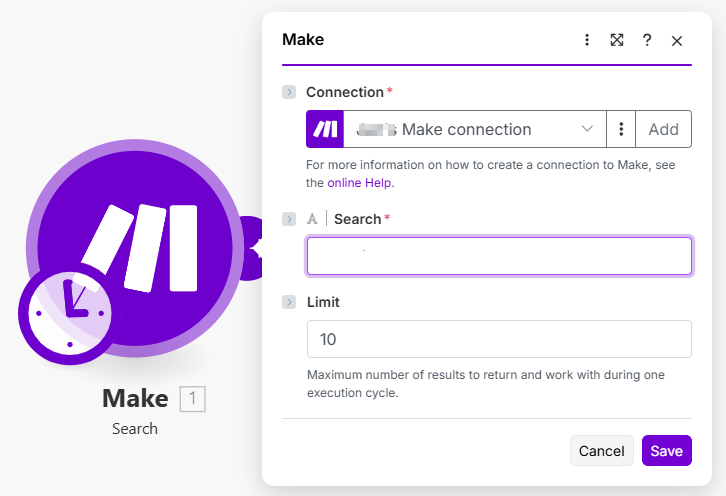

Appearance

Communication

{

	"url": "/api/users",
	"qs": {
		"search": "{{parameters.search}}"
		},
	"method": "GET",
	"response": {
		"output": "{{item}}",
		"iterate": "{{body.users}}",
		"limit": "{{parameters.limit}}"
	}
}

Static parameters

[]

Mappable parameters

[
	{
		"name": "search",
		"type": "text",
		"label": "Search",
		"required": true
	},
	{
		"name": "limit",
		"type": "uinteger",
		"label": "Limit",
		"help": "Maximum number of results to return and work with during one execution cycle.",
		"default": 10
	}
]

Interface

[
	{
		"name": "id",
		"type": "uinteger",
		"label": "User ID"
	},
	{
		"name": "email",
		"type": "email",
		"label": "Email address"
	},
	{
		"name": "name",
		"type": "text",
		"label": "Name"
	},
	{
		"name": "created",
		"type": "date",
		"label": "Date created"
	}
]

Samples

{
	"id": 1,
	"email": "[email protected]",
	"name": "John Doe",
	"created": "2018-01-01T12:00:00.000Z"
}
